OEM Part Number: AA1447679

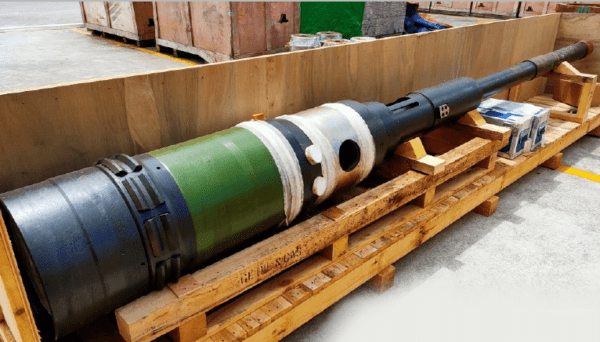

HT-2 18-3/4” Tubing Hanger with pup joint.
Unit was manufactured in 2020, preserved and unused
Bore Size: 5” Production Outlet & Concentric Main/through bore
5 1/2” 17 lbs/ft JFE Bear Box Thread
Tubing Hanger with pup joint: 6,200 PSI
Tubing Hanger without pup joint: 10,000 PSI
Temp Class U (-18°C to 121°C)
3G PSL
HH Trim (low alloy steel F22 base metal with 625 CRA)
Penetrations;
1-off downhole hydraulic line (SCSSV)
1-off downhole electrical line for DHPT
Wet Mate Receptacle type Electrical connector on the side of the hanger
Facility to fit 2-off crown plugs in tubing hanger body
5.383” Lower Crown Plug
5.910” Upper Crown Plug
c/w UCP, LCP and DHPT fitting
