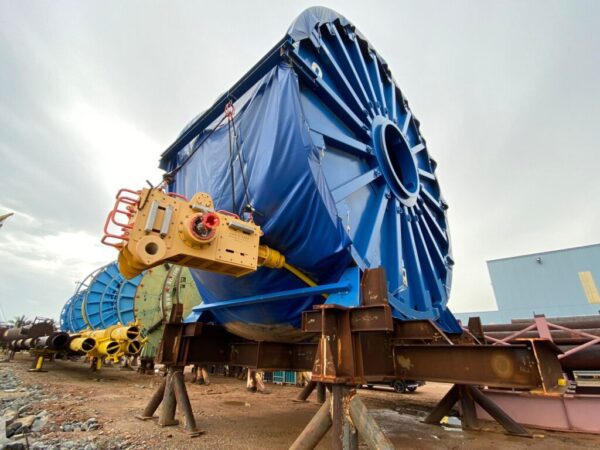

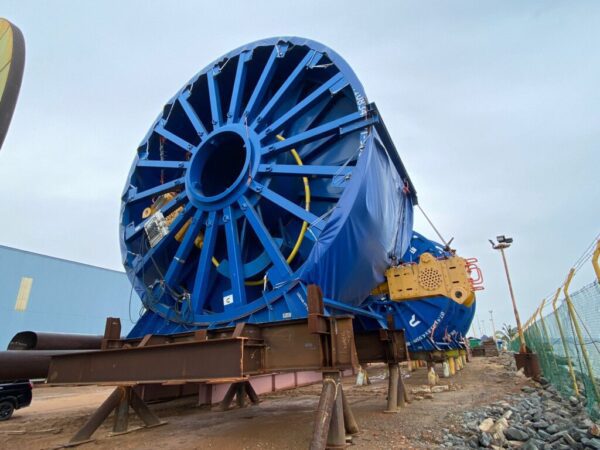

9.16km long infield umbilical with Umbilical Termination Assemblies (UTA) and Vertebrae Bend Restrictor (VBR) on both ends
Manufactured in 2021
Design Depth: Minimum 200m
Design Temp: -5degC to +40degC
Diameter: 127mm (±2.5mm)
Line 1 & 2
2-off 1/2” hydraulic hose rating 345 bar DWP, 19.45mm OD, 191mm MBR
Line 3 & 4
2-off 3/8” hydraulic hose rating 690 bar DWP, 17.6mm OD, 183mm MBR
Line 5, 7 & 8
3-off 3/4” hydraulic hose rating 517 bar DWP, 31.75mm OD, 347mm MBR (Line 8 is spare)
Line 6
1-off 1/2” hydraulic hose rating 517 bar DWP, 20.2mm OD, 202mm MBR
Electrical Assembly
2-off 4 x 6 mm², 0.6/1.0kV twisted pair cable, 170mm MBR
Umbilical Termination Unit
At both ends of umbilical. All internal Tubes are Autoclave with a DWP of 10Kpsi
