OEM Part Number: AA1447002

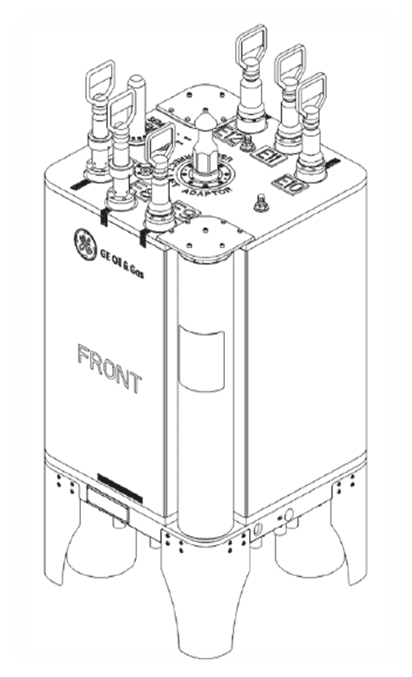

Baker Hughes Subsea Control Module, with dual SEMStar5 Subsea Electronic Modules
Unit was manufactured in 2020 and unused
2000m Design Operating Depth
Filled with MacDermid Oceanic HW443 R Working Fluid
Max Working Pressure;
LP System: 345 Bar
HP System: 690 Bar
Return System: 91 Bar
Design Temperature;
Operating: –5oC to +40oC
Storage: –18oC to +50oC
Electrical Connectors Manufacturer: Teledyne ODI
Type: Nautilus

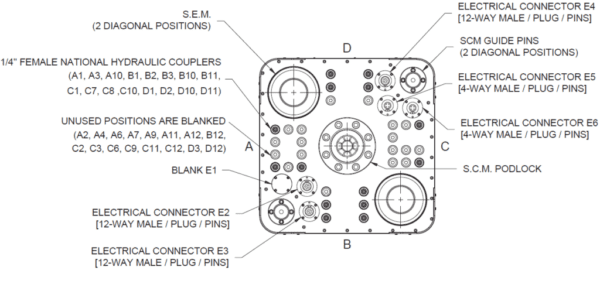

SCM Base Plate: 5 off electrical connectors
SCM Top: 2 off supply, 4 off sensor
Hydraulic Arrangement: Dual supply with bi-stable DCVs. SCM open loop
Hunting Baseplate mounted Hydraulic couplers LP / HP, TO-Series, MWP = 690 Bar and ¼” size.
3-way, 2 position bi-stable, with dual coils Directional Control Valve.
MWP: 690 Bar. De-latch Pressure: 50 – 80 Bar,
3-way Shuttle Valve, 2 positions with a MWP of 690 Bar.
1-off HP Supply, 1-off LP Supply and 1-off Return Flowmeters
Pressure Transducers & HP, LP and return lines
Range: 0 – 600 Bar, with a 4 – 20 mA output and an accuracy of ±1.6%.
Hydraulic filters / LP circuit has a MWP of 350 Bar and a 3 μm element. Bypass cracking pressure is 6 Bar nom. full reverse flow capable.
Hydraulic filters / HP circuit has a MWP of 690 Bar and a 3 μm element. Bypass cracking pressure is 6 Bar nom. full reverse flow capable.
Hydraulic supply / accumulators 2-off LP
Bladder, isolatable type (low permeability nitrile), with a MWP 345 Bar.
